Flutter Awesome Rotating Loading Logos /Animations

Naseer Aziz Ullah August 26, 2020

Flutter Amazing Animations Logos

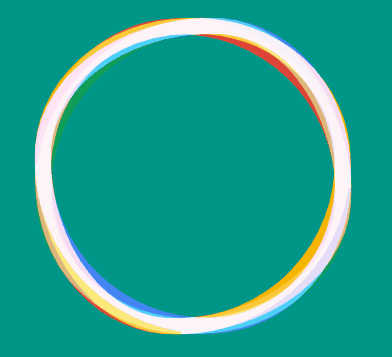

1. Round Animations




import 'dart:math' show pi;

import 'package:flutter/material.dart';

void main() => runApp(SpinniesApp());


class SpinniesApp extends StatelessWidget {

   @override

   Widget build(BuildContext context) {

    return MaterialApp(

      title: 'Flutter Demo',

      home: Scaffold(

        backgroundColor: Colors.teal,

        body: Center(

          child: SizedBox(

            width: 300,

            height: 300,

            child: Spinnies(

              duration: Duration(seconds: 6),

              blendMode: BlendMode.screen,

            ),

          ),

        ),

      ),

    );

  }

}



/// A Widget that can be configured to show funky spinning rectangles!

///

/// ### Usage

///

/// ```

/// Spinnies(

///   duration: Duration(milliseconds: 2500),

///   rects: [

///     SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),

///     SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),

///     SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),

///     SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),

///   ],

/// );

/// ```


class Spinnies extends StatefulWidget {

  final Duration duration;

  final List rects;

  final BlendMode blendMode;



  Spinnies({

    Key key,

    @required this.duration,

    this.blendMode = BlendMode.screen,

    List rects,

  })  : this.rects = rects ??

            [

              SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),

              SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),

              SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),

              SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),

            ],

        super(key: key);



  @override

  _SpinniesState createState() => _SpinniesState();

}



class _SpinniesState extends State

    with SingleTickerProviderStateMixin {

  AnimationController _controller;



  @override

  void initState() {

    _controller = AnimationController(vsync: this, duration: widget.duration)

      ..forward()

      ..repeat();



    super.initState();

  }



  @override

  void dispose() {

    _controller.dispose();

    super.dispose();

  }



  @override

  Widget build(BuildContext context) {

    return CustomPaint(

      painter: SpinniesPainter(

        blendMode: widget.blendMode,

        rects: widget.rects,

        animation: _controller,

      ),

    );

  }

}

The interface used by CustomPaint (in the widgets library) and RenderCustomPaint (in the rendering library).

To implement a custom painter, either subclass or implement this interface to define your custom paint delegate. CustomPaint subclasses must implement the paint and shouldRepaint methods, and may optionally also implement the hitTest and shouldRebuildSemantics methods, and the semanticsBuilder getter.

The paint method is called whenever the custom object needs to be repainted.

The shouldRepaint method is called when a new instance of the class is provided, to check if the new instance actually represents different information.



The most efficient way to trigger a repaint is to either:
Extend this class and supply a repaint argument to the constructor of the CustomPainter, where that object notifies its listeners when it is time to repaint.
Extend Listenable (e.g. via ChangeNotifier) and implement CustomPainter, so that the object itself provides the notifications directly.

In either case, the CustomPaint widget or RenderCustomPaint render object will listen to the Listenable and repaint whenever the animation ticks, avoiding both the build and layout phases of the pipeline.

The hitTest method is called when the user interacts with the underlying render object, to determine if the user hit the object or missed it.

The semanticsBuilder is called whenever the custom object needs to rebuild its semantics information.

The shouldRebuildSemantics method is called when a new instance of the class is provided, to check if the new instance contains different information that affects the semantics tree.


  class SpinniesPainter extends CustomPainter {
  final List<SpinRect> rects;

  // We accept the animation for two reasons: first, it drives when the custom
  // painter should repaint. Second, it allows us to get the current value of
  // the animation so we can use that to calculate the current rotation of each
  // SpinRect.
  final Animation<double> animation;
  final BlendMode blendMode;

  Size _cachedSize;
  RRect _cachedFunkyRect;

  SpinniesPainter({
    @required this.rects,
    @required this.animation,
    @required this.blendMode,
  }) : super(repaint: animation);

  @override
  void paint(Canvas canvas, Size size) {
    // Create a separate layer for the canvas, so the rects will not be
    // composited onto the background color.
    canvas.saveLayer(null, Paint());

    // Defines the Rect we'll be drawing and it's funky border radii
    final funkyRect = _buildFunkyRect(size);

    // The drawing portion of the class. It is responsible for drawing all of
    // the different rectangles.
    for (final rect in rects) {
      canvas.save();

      // Rotate the correct amount around an origin point
      canvas.translate(size.width / 2, size.height / 2);
      canvas.rotate(rect.tween.transform(animation.value) * pi * 2);
      canvas.translate(-size.width / 2, -size.height / 2);

      // Then draw the rectangle
      canvas.drawRRect(
          funkyRect,
          Paint()
            ..blendMode = blendMode
            ..strokeWidth = rect.strokeWidth
            ..style = PaintingStyle.stroke
            ..color = rect.color);

      canvas.restore();
    }

    // Undo the saveLayer
    canvas.restore();
  }

  @override
  bool shouldRepaint(SpinniesPainter oldDelegate) {
    return true;
  }

  RRect _buildFunkyRect(Size size) {
    if (size != _cachedSize) {
      _cachedFunkyRect = RRect.fromLTRBAndCorners(
        0.0,
        0.0,
        size.width,
        size.height,
        topLeft: Radius.elliptical(
          size.width * 1.15,
          size.height * 1.25,
        ),
        topRight: Radius.elliptical(
          size.width * 1.40,
          size.height * 1.40,
        ),
        bottomRight: Radius.elliptical(
          size.width * 1.45,
          size.height * 1.10,
        ),
        bottomLeft: Radius.elliptical(
          size.width * 1.10,
          size.height * 1.25,
        ),
      );

      _cachedSize = size;
    }

    return _cachedFunkyRect;
  }
}

class SpinRect {
  final Color color;
  final double strokeWidth;
  final Tween<double> tween;

  SpinRect({
    @required this.color,
    @required double begin,
    @required double end,
    this.strokeWidth = 16.0,
  }) : tween = Tween<double>(begin: begin, end: end);
}

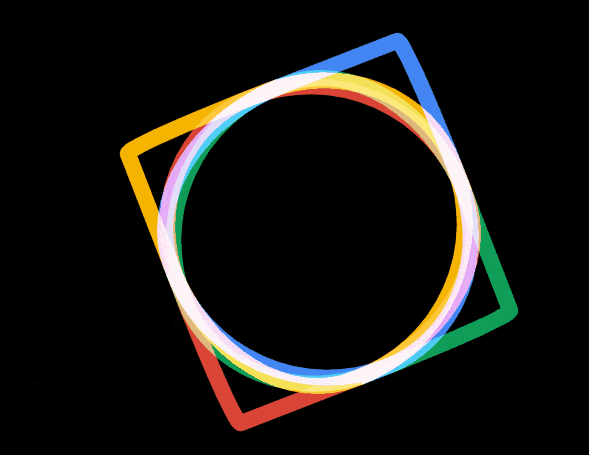

2. Square Animations




import 'dart:math' show pi;

import 'package:flutter/material.dart';

void main() => runApp(SpinniesApp());

class SpinniesApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      home: Scaffold(
        backgroundColor: Colors.black,
        body: Center(
          child: SizedBox(
            width: 300,
            height: 300,
            child: Spinnies(
              duration: Duration(seconds: 6),
              blendMode: BlendMode.screen,
            ),
          ),
        ),
      ),
    );
  }
}

/// A Widget that can be configured to show funky spinning rectangles!
///
/// ### Usage
///
/// ```
/// Spinnies(
///   duration: Duration(milliseconds: 2500),
///   rects: [
///     SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),
///     SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),
///     SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),
///     SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),
///   ],
/// );
/// ```
class Spinnies extends StatefulWidget {
  final Duration duration;
  final List<SpinRect> rects;
  final BlendMode blendMode;

  Spinnies({
    Key key,
    @required this.duration,
    this.blendMode = BlendMode.screen,
    List<SpinRect> rects,
  })  : this.rects = rects ??
            [
              SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),
              SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),
              SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),
              SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),
            ],
        super(key: key);

  @override
  _SpinniesState createState() => _SpinniesState();
}

class _SpinniesState extends State<Spinnies>
    with SingleTickerProviderStateMixin {
  AnimationController _controller;

  @override
  void initState() {
    _controller = AnimationController(vsync: this, duration: widget.duration)
      ..forward()
      ..repeat();

    super.initState();
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return CustomPaint(
      painter: SpinniesPainter(
        blendMode: widget.blendMode,
        rects: widget.rects,
        animation: _controller,
      ),
    );
  }
}

class SpinniesPainter extends CustomPainter {
  final List<SpinRect> rects;

  // We accept the animation for two reasons: first, it drives when the custom
  // painter should repaint. Second, it allows us to get the current value of
  // the animation so we can use that to calculate the current rotation of each
  // SpinRect.
  final Animation<double> animation;
  final BlendMode blendMode;

  Size _cachedSize;
  RRect _cachedFunkyRect;

  SpinniesPainter({
    @required this.rects,
    @required this.animation,
    @required this.blendMode,
  }) : super(repaint: animation);

  @override
  void paint(Canvas canvas, Size size) {
    // Create a separate layer for the canvas, so the rects will not be
    // composited onto the background color.
    canvas.saveLayer(null, Paint());

    // Defines the Rect we'll be drawing and it's funky border radii
    final funkyRect = _buildFunkyRect(size);

    // The drawing portion of the class. It is responsible for drawing all of
    // the different rectangles.
    for (final rect in rects) {
      canvas.save();

      // Rotate the correct amount around an origin point
      canvas.translate(size.width / 2, size.height / 2);
      canvas.rotate(rect.tween.transform(animation.value) * pi * 2);
      canvas.translate(-size.width / 2, -size.height / 2);

      // Then draw the rectangle
      canvas.drawRRect(
          funkyRect,
          Paint()
            ..blendMode = blendMode
            ..strokeWidth = rect.strokeWidth
            ..style = PaintingStyle.stroke
            ..color = rect.color);

      canvas.restore();
    }

    // Undo the saveLayer
    canvas.restore();
  }

  @override
  bool shouldRepaint(SpinniesPainter oldDelegate) {
    return true;
  }

  RRect _buildFunkyRect(Size size) {
    if (size != _cachedSize) {
      _cachedFunkyRect = RRect.fromLTRBAndCorners(
        0.0,
        0.0,
        size.width,
        size.height,
        topLeft: Radius.elliptical(
          size.width * 1.15,
          size.height * 1.25,
        ),
        topRight: Radius.elliptical(
          size.width * 1.40,
          size.height * 1.40,
        ),
        bottomRight: Radius.elliptical(
          size.width * 1.45,
          size.height * 1.10,
        ),
        bottomLeft: Radius.elliptical(
         20,
          size.height * 1.25,
        ),
      );

      _cachedSize = size;
    }

    return _cachedFunkyRect;
  }
}

class SpinRect {
  final Color color;
  final double strokeWidth;
  final Tween<double> tween;

  SpinRect({
    @required this.color,
    @required double begin,
    @required double end,
    this.strokeWidth = 16.0,
  }) : tween = Tween<double>(begin: begin, end: end);
}

3. Cross Rotating Logo



import 'dart:math' show pi;

import 'package:flutter/material.dart';

void main() => runApp(SpinniesApp());

class SpinniesApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      home: Scaffold(
        backgroundColor: Colors.white,
        body: Center(
          child: SizedBox(
            width: 300,
            height: 300,
            child: Spinnies(
              duration: Duration(seconds: 6),
              blendMode: BlendMode.screen,
            ),
          ),
        ),
      ),
    );
  }
}

/// A Widget that can be configured to show funky spinning rectangles!
///
/// ### Usage
///
/// ```
/// Spinnies(
///   duration: Duration(milliseconds: 2500),
///   rects: [
///     SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),
///     SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),
///     SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),
///     SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),
///   ],
/// );
/// ```
class Spinnies extends StatefulWidget {
  final Duration duration;
  final List<SpinRect> rects;
  final BlendMode blendMode;

  Spinnies({
    Key key,
    @required this.duration,
    this.blendMode = BlendMode.screen,
    List<SpinRect> rects,
  })  : this.rects = rects ??
            [
              SpinRect(color: Color(0xFFDB4437), begin: 0.0, end: 1.0),
              SpinRect(color: Color(0xFFF4B400), begin: 0.25, end: 1.25),
              SpinRect(color: Color(0xFF4285F4), begin: 0.5, end: 1.5),
              SpinRect(color: Color(0xFF0F9D58), begin: 0.75, end: 1.75),
            ],
        super(key: key);

  @override
  _SpinniesState createState() => _SpinniesState();
}

class _SpinniesState extends State<Spinnies>
    with SingleTickerProviderStateMixin {
  AnimationController _controller;

  @override
  void initState() {
    _controller = AnimationController(vsync: this, duration: widget.duration)
      ..forward()
      ..repeat();

    super.initState();
  }

  @override
  void dispose() {
    _controller.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return CustomPaint(
      painter: SpinniesPainter(
        blendMode: widget.blendMode,
        rects: widget.rects,
        animation: _controller,
      ),
    );
  }
}

class SpinniesPainter extends CustomPainter {
  final List<SpinRect> rects;

  // We accept the animation for two reasons: first, it drives when the custom
  // painter should repaint. Second, it allows us to get the current value of
  // the animation so we can use that to calculate the current rotation of each
  // SpinRect.
  final Animation<double> animation;
  final BlendMode blendMode;

  Size _cachedSize;
  RRect _cachedFunkyRect;

  SpinniesPainter({
    @required this.rects,
    @required this.animation,
    @required this.blendMode,
  }) : super(repaint: animation);

  @override
  void paint(Canvas canvas, Size size) {
    // Create a separate layer for the canvas, so the rects will not be
    // composited onto the background color.
    canvas.saveLayer(null, Paint());

    // Defines the Rect we'll be drawing and it's funky border radii
    final funkyRect = _buildFunkyRect(size);

    // The drawing portion of the class. It is responsible for drawing all of
    // the different rectangles.
    for (final rect in rects) {
      canvas.save();

      // Rotate the correct amount around an origin point
      canvas.translate(10/2, size.height / 2);
      canvas.rotate(rect.tween.transform(animation.value) * pi * 2);
      canvas.translate(-10/ 2, -size.height / 2);

      // Then draw the rectangle
      canvas.drawRRect(
          funkyRect,
          Paint()
            ..blendMode = blendMode
            ..strokeWidth = rect.strokeWidth
            ..style = PaintingStyle.stroke
            ..color = rect.color);

      canvas.restore();
    }

    // Undo the saveLayer
    canvas.restore();
  }

  @override
  bool shouldRepaint(SpinniesPainter oldDelegate) {
    return true;
  }

  RRect _buildFunkyRect(Size size) {
    if (size != _cachedSize) {
      _cachedFunkyRect = RRect.fromLTRBAndCorners(
        0.0,
        0.0,
        10,
        size.height,
        topLeft: Radius.elliptical(
          10,
          size.height * 1.25,
        ),
        topRight: Radius.elliptical(
          10,
          size.height * 1.40,
        ),
        bottomRight: Radius.elliptical(
          10,
          size.height * 1.10,
        ),
        bottomLeft: Radius.elliptical(
         10,
          size.height * 1.25,
        ),
      );

      _cachedSize = size;
    }

    return _cachedFunkyRect;
  }
}

class SpinRect {
  final Color color;
  final double strokeWidth;
  final Tween<double> tween;

  SpinRect({
    @required this.color,
    @required double begin,
    @required double end,
    this.strokeWidth = 16.0,
  }) : tween = Tween<double>(begin: begin, end: end);
}

If You Like These Animations Collections, Please Comment Us And Also Email Subscribe For Daily Updates.



Tags

Post a Comment

0 Comments

Welcome! Please Comment Without Any Hesitation.
Thank You
